Sundance Spas – Flow Switch/Tee Assy, 1 Pump Systems 3/4in, 6560-857

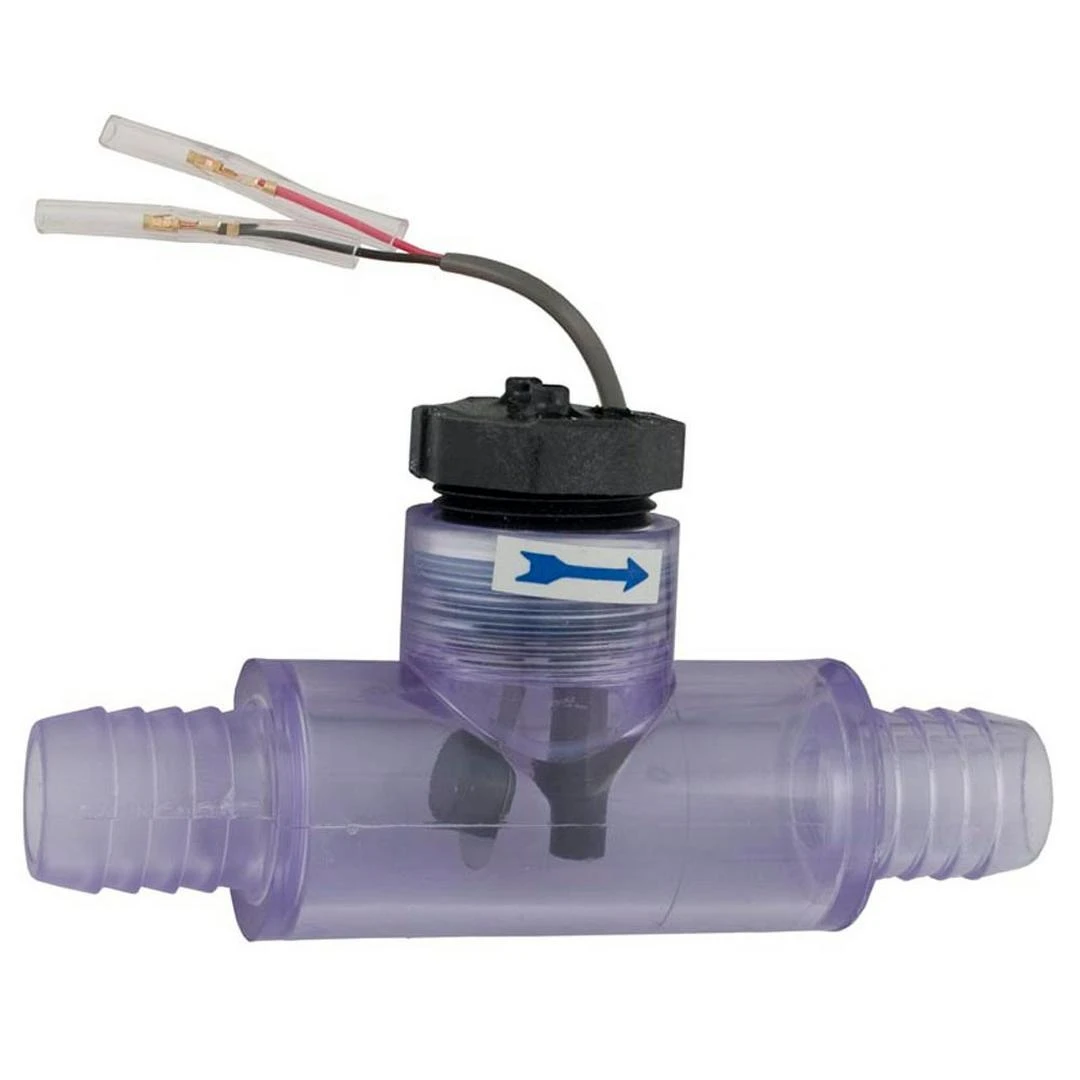

Sundance Spa compatible Heater Flow Switch with Transparent body is used as a Sundance Flow Switch with transparent tee fitting; fits all 6/99- present 1-pump systems, single-pumps spas, except 2001 – Present Capri spas. Replaces 6560-857.

Connects to 3/4″” Hose with two 3/4″” ribbed hose barb fittings, and does NOT have a third, 3/8″” barb fitting, and is Not used on multi-pump Sundance spas, see part number . This resistive flow switch includes two wire leads to connect to spa control. A single pole normally open (SPNO) reed switch uses magnetic coupling, carries 2.5 amps and measures 0.15 Ohms contact resistance.

If your topside control panel is giving you a FLO error but your circulation pump is running and spa filter is clean, you may have a defective Flo Switch.

Spa heater flow switch Replaces 6560-857 and has 3/4″” hose barb fittings. To install, push into the hoses and clamp into place, with the flow indicator arrow aligned with the water flow. Water is designed to hit the magnetic paddle head-on and must be facing in the correct direction to accurately measure water flow.
